Bobcat ZS4000 Stand-On Zero Turn Mower
The Bobcat ZS4000 Stand-On Zero Turn mower offers outstanding stability, agility, and for those in the commercial business, profitability!
With a compact size, extra ground clearance and large drive tires, the ZS4000 zero-turn stand-on mower gets over and around obstacles and on to the next job. Equipped with commercial-grade features including the bullnose AirFX™ cutting system (DuraDeck™ Cutting System on 36″ model), a low center of gravity for traversing hills with ease, and tool-free controls for quick fixes, this mower has all the features that allow you to stand up to downtime and keep you mowing forward.
Available in 36″, 48″, and 52″ cutting widths. Specifications for each model below.
FINANCING AVAILABLE
$10,385.00 – $10,920.00
Description
The Bobcat ZS4000 Stand-On Zero Turn mower offers outstanding stability, agility, and for those in the commercial business, profitability!
With a compact size, extra ground clearance and large drive tires, the ZS4000 zero-turn stand-on mower gets over and around obstacles and on to the next job. Equipped with commercial-grade features including the bullnose AirFX™ cutting system (DuraDeck™ Cutting System on 36″ model), a low center of gravity for traversing hills with ease, and tool-free controls for quick fixes, this mower has all the features that allow you to stand up to downtime and keep you mowing forward.
Bobcat ZS4000 Power & Performance
Get stand-up performance with the ZS4000 zero-turn stand-on mower. Delivering power, performance and fast ground speeds, this mower is equipped with an innovative AirFX deck (DuraDeck™ Cutting System on 36″ model), tool-free controls and an operator station – all designed to let you maneuver through tough obstacles with total confidence.
All come with dependable and rugged Kawasaki engines.
ZS4000 – Other Features
An impressive quality of cut and a cleaner cutting deck are made possible by industry-leading technology. Featuring Air-Gap baffles and vacuum seals, the ZS4000’s AirFX cutting deck increases lift on every blade of grass for unmatched precision.
When it comes to maneuvering around obstacles or tight spaces, the ZS4000 has an intuitive operator-station design that provides a superior “center of mass” stability that makes you feel like you’re one with the machine.
Command unmatched control and response from ergonomic, tool-free controls with adjustable tracking that put a whole new level of zero-turn, stand-on mowing control right at your fingertips.
Warranty: 3-year / 2,00 Hour Whichever Occurs First
Bobcat Mowers – Orangeville, Erin, Wellington, Guelph, Halton, Caledon, Brampton, Fergus, And Area
Rapid Rentals in Erin, Ontario can help you get the right Bobcat Mower for your application, whether it is for personal or commercial use – throughout Wellington, Dufferin, and Peel Counties! We are the Authorized Bobcat dealer for the area, and can help you ensure you get the right machine for your needs. Contact us today.
Compare ZS4000 Model Specs
36" Specs | 48" Specs | 52" Specs | |
---|---|---|---|
MODEL NO: | 9994001 | 9994002 | 9994003 |
OUR PRICE: | $10,385.00 | $10,475.00 | $10,920.00 |
KEY SPECIFICATIONS | |||
Mower Deck | DuraDeck™ Cutting System | AirFX™ Cutting System | AirFX™ Cutting System |
Width | 36 in | 48 in | 52 in |
Cutting Height | 1.5-4.5 | 1.5-4.5 | 1.5-4.5 |
Engine Model | Kaw FX600V | Kaw FX651V | Kaw FT730 EFI |
Displacement | 603 cm³ | 726 cm³ | 726 cm³ |
Transmission type | HG ZT-3100 Hydrostatic Transaxles | HG ZT-3400 Hydrostatic Transaxles | HG ZT-3400 Hydrostatic Transaxles |
Pump Displacement | 10 cm³ | 12 cm³ | 12 cm³ |
DECK: | |||
Mower Deck | DuraDeck™ Cutting System | AirFX™ Cutting System | AirFX™ Cutting System |
Width | 36 in | 48 in | 52 in |
Cutting Height | 1.5-4.5 | 1.5-4.5 | 1.5-4.5 |
Blade Tip Speed | 17,600 ft/min | 17,800 ft/min | 18,586 ft/min |
Discharge Chute | Flexible Molded Polymer | Flexible Molded Polymer | Flexible Molded Polymer |
ENGINE: | |||
Engine Model | Kaw FX600V | Kaw FX651V | Kaw FT730 EFI |
Displacement | 603 cm³ | 726 cm³ | 726 cm³ |
Fuel Capacity | 5.1 gal | 6.5 gal | 6.5 gal |
Horsepower | 19 hp | 20.5 hp | 26 hp |
PERFORMANCE: | |||
Weight | 800 lb | 961 lb | 991 lb |
TRANSMISSION: | |||
Transmission type | HG ZT-3100 Hydrostatic Transaxles | HG ZT-3400 Hydrostatic Transaxles | HG ZT-3400 Hydrostatic Transaxles |
Pump Displacement | 10 cm³ | 12 cm³ | 12 cm³ |
Oil Capacity | 4 qt_liq_us | 4 qt_liq_us | 4 qt_liq_us |
Forward Speed | 9 mph | 10.5 mph | 10.5 mph |
Reverse Speed | 3.5 mph | 3.5 mph | 3.5 mph |
ELECTRICAL: | |||
Charging System | 15 A | 15 A | 15 A |
Clutch | 125 ft·lbf | 200 ft·lbf | 200 ft·lbf |
FRAME: | |||
Front/Rear | Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing | Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing | Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing |
Length | 64 in | 64 in | 64 in |
WHEELS: | |||
Drive Wheel | 20 x 8.0-10 | 23 x 8.5-12 | 23 x 10.5-12 |
Front Caster Wheel Size | 11 x 6.0-5 | 13 x 6.5-6 | 13 x 6.5-6 |
Caster Arm Attachment | Bolt-On | Bolt-On | Bolt-On |
SEAT: | |||
Seat | Operator Pad - tethered, removable | Operator Pad - tethered, removable | Operator Pad - tethered, removable |
Fore-Aft Adjust | Flip Up and Latch | Flip Up and Latch | Flip Up and Latch |
Videos

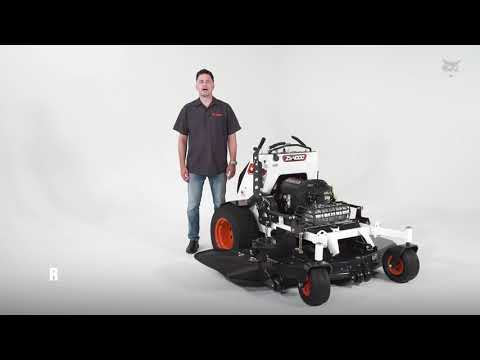

Mowing in Tight Spaces with the Bobcat ZS4000
Bobcat Zero-Turn Mower Saftey
36" Specs
Our Price: 10,385.00
Configuration: Stand On
Engine
Model: Kawasaki FX600V
Displacement: 603cm³
Fuel Capacity: 5.1 gallon
Air Filter: Dual Element
Horsepower: 19 hp
Electrical System
Charging System: 15 Amp
Clutch: 125 lbf (889N)
Deck
Mower Deck: DuraDeck™ Cutting System
Leading Edge: Adjustable, Front Lip Standard
Width: 36.0 inch (1219 mm)
Cutting Height: 1.5-4.5in (38-114 mm)
Blade Tip Speed: 17,600 fpm @ 3550 Engine RPM
Discharge Chute: Flexible Molded Polymer
Frame
Front & Rear: Welded, 7 Gauge Steel; 1.5 X 2.5 in. Steel Tubing
Machine Length: 64.0 in (1625 mm)
Machine Weight: 800 wet lb.
Transmission
Type: HG ZT-3100 Hydrostatic Transaxles
Pump Displacement: 10 cm³
Oil Capacity: 4 qt_liq_us
Forward Speed: 0-9 mph
Reverse Speed: 0-3.5 mph
Wheels
Drive Wheel Size: 20 x 8.0-10
Front Caster Wheel Size: 11 x 6.0-5
Caster Arm Attachment: Bolt-On
Seat
Seat: Operator Pad – tethered, removable
Fore-Aft Adjust: Flip Up and Latch
Warranty: 3-year / 2,00 Hours (Whichever occurs first)
48" Specs
Our Price: 10,475.00
Configuration: Stand On
Engine
Model: Kawasaki FX651V
Displacement: 726 cm³
Fuel Capacity: 6.5 gallon
Air Filter: Dual Element
Horsepower: 20.5 hp
Electrical System
Charging System: 15 Amp
Clutch: 200 lbf (889N)
Deck
Mower Deck: AirFX™ Cutting System
Width: 46.0 inch
Cutting Height: 1.5-4.5in (38-114 mm)
Blade Tip Speed: 17,800 fpm @ 3550 Engine RPM
Discharge Chute: Flexible Molded Polymer
Frame
Front & Rear: Welded, 7 Gauge Steel; 1.5 X 2.5 in. Steel Tubing
Machine Length: 64.0 in (1625 mm)
Machine Weight: 961 wet lb.
Transmission
Type: HG ZT-3400 Hydrostatic Transaxles
Pump Displacement: 12 cm³
Oil Capacity: 1 gal (4.0 L)
Forward Speed: 0-10.5 mph
Reverse Speed: 0-3.5 mph
Wheels
Drive Wheel Size: 23 x 8.5-12
Front Caster Wheel Size: 13 x 6.5-6
Caster Arm Attachment: Bolt-On
Seat
Seat: Operator Pad – tethered, removable
Fore-Aft Adjust: Flip Up and Latch
Warranty: 3-year / 2,00 Hours (Whichever occurs first)
52" Specs
Our Price: 10,920.00
Configuration: Stand On
Engine
Model: Kawasaki FT730 EFI
Displacement: 726 cm³
Fuel Capacity: 6.5 gallon
Air Filter: Dual Element
Horsepower: 26 hp
Electrical System
Charging System: 15 Amp
Clutch: 200 lbf (889N)
Deck
Mower Deck: AirFX™ Cutting System
Width: 52.0 inch
Cutting Height: 1.5-4.5in (38-114 mm)
Blade Tip Speed: 18,856 fpm @ 3550 Engine RPM
Discharge Chute: Flexible Molded Polymer
Frame
Front & Rear: Welded, 7 Gauge Steel; 1.5 X 2.5 in. Steel Tubing
Machine Length: 64.0 in (1625 mm)
Machine Weight: 991 wet lb.
Transmission
Type: HG ZT-3400 Hydrostatic Transaxles
Pump Displacement: 12 cm³
Oil Capacity: 1 gal (4.0 L)
Forward Speed: 0-10.5 mph
Reverse Speed: 0-3.5 mph
Wheels
Drive Wheel Size: 23 x 8.5-12
Front Caster Wheel Size: 13 x 6.5-6
Caster Arm Attachment: Bolt-On
Seat
Seat: Operator Pad – tethered, removable
Fore-Aft Adjust: Flip Up and Latch
Warranty: 3-year / 2,00 Hours (Whichever occurs first)
