Bobcat ZT3500 Zero Turn Mower
The Bobcat ZT3500 Zero Turn mower is built to delivery commercial-grade performance at an affordable price. A heavy-duty 7-gauge steel frame is standard throughout.
When you have more acres to maintain,you need more commercial-grade features to keep you on top. With the ZT3500, that comes standard.
The ZT3500 zero-turn mower features Hydro-Gear® ZT-3400 hydrostatic transaxle and a high-back, full-mechanical suspension seat. It’s also equipped with a powerful Kawasaki® FX series engine that delivers enhanced power. This zero-turn mower also boasts a heavy-duty drive system for quick ground speeds.
- Entry-level commercial mower
- Recommended for jobs from 3-5 acres
- Kawasaki FX801V 25.5 hp engine
- 48-, 52- or 61-inch TufDeck Pro cutting system
Specifications and more information below.
FINANCING AVAILABLE!
Description
The Bobcat ZT3500 Zero Turn mower is built to delivery commercial-grade performance at an affordable price. A heavy-duty 7-gauge steel frame is standard throughout.
The ZT3500 zero-turn mower features Hydro-Gear® ZT-3400 hydrostatic transaxle and a high-back, full-mechanical suspension seat. It’s also equipped with a powerful Kawasaki® FX series engine that delivers enhanced power. This zero-turn mower also boasts a heavy-duty drive system for quick ground speeds.
Bobcat ZT3500 Power & Performance
With this 61 inch width model, you’re getting the top of the line Kawasaki FX engine with innovative OHV V-Valve technology gives you and your crew commercial-grade reliability and performance – up to 35 hp – to cut the toughest jobs down to size effortlessly.

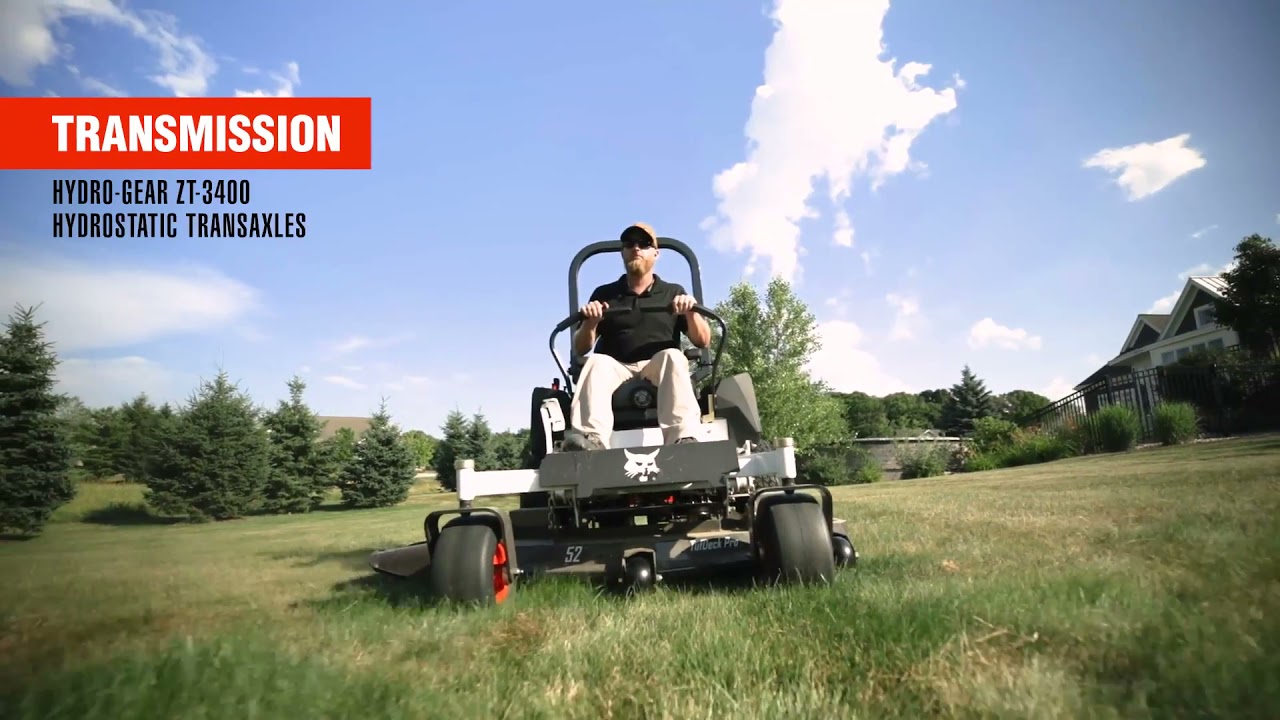

An innovative transmission engineered to deliver smooth and simple operations. The Hydro-Gear® ZT-3400 hydrostatic transaxles deliver heavy-duty output torque for travel speeds up to 10 mph.
- Entry-level commercial mower
- Recommended for jobs from 3-5 acres
- Kawasaki FX801V 25.5 hp engine
- 48-, 52- or 61-inch TufDeck Pro cutting system
- Lightweight, durable, solid tubular frame
- Tough-welded cast aluminum spindles
- High-back spring suspension seat
- Dual fuel tanks with 7.8-gallon fuel capacity
- 23-inch drive tires
- Hydro-Gear® ZT-3400 hydrostatic transaxle delivers great mowing power at high speeds
- 10 mph ground speed
Warranty: 3-year / 1,00 Hour Bumper To Bumper Warranty
Bobcat Mowers – Orangeville, Erin, Wellington, Guelph, Halton, Caledon, Brampton, Fergus, And Area
Rapid Rentals in Erin, Ontario can help you get the right Bobcat Mower for your application, whether it is for personal or commercial use – throughout Wellington, Dufferin, and Peel Counties! We are the Bobcat dealer for this area, and can help you ensure you get the right machine for your needs. Contact us today.
Compare ZT3500 Model Specs
| 48" Specs | 52" Specs | 61" Specs | |
|---|---|---|---|
| MODEL NO: | 9993501 | 9993502 | 9993503 |
| OUR PRICE: | $10,690.00 | $10,900.00 | $11,220.00 |
| KEY SPECIFICATIONS | |||
| Mower Deck | TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts | TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts | TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts |
| Width | 48 in | 52 in | 61 in |
| Cutting Height | 1.5-4.875 | 1.5-4.875 | 1.5-4.875 |
| Engine Model | Kaw FX651V | Kaw FX691V | Kaw FX730V |
| Displacement | 726 cm³ | 726 cm³ | 726 cm³ |
| Transmission type | HG ZT-3400 Hydrostatic Transaxles | HG ZT-3400 Hydrostatic Transaxles | HG ZT-3400 Hydrostatic Transaxles |
| Pump Displacement | 12 cm³ | 12 cm³ | 12 cm³ |
| DECK: | |||
| Mower Deck | TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts | TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts | TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts |
| Width | 48 in | 52 in | 61 in |
| Cutting Height | 1.5-4.875 | 1.5-4.875 | 1.5-4.875 |
| Blade Tip Speed | 17,365 ft/min | 18,142 ft/min | 18,809 ft/min |
| Discharge Chute | Flexible Molded Polymer | Flexible Molded Polymer | Flexible Molded Polymer |
| ENGINE: | |||
| Engine Model | Kaw FX651V | Kaw FX691V | Kaw FX730V |
| Displacement | 726 cm³ | 726 cm³ | 726 cm³ |
| Fuel Capacity | 7.8 gal | 7.8 gal | 7.8 gal |
| Horsepower | 21.5 hp | 22 hp | 24 hp |
| PERFORMANCE: | |||
| Weight | 773 lb | 789 lb | 832 lb |
| TRANSMISSION: | |||
| Transmission type | HG ZT-3400 Hydrostatic Transaxles | HG ZT-3400 Hydrostatic Transaxles | HG ZT-3400 Hydrostatic Transaxles |
| Pump Displacement | 12 cm³ | 12 cm³ | 12 cm³ |
| Oil Capacity | 4 qt_liq_us | 4 qt_liq_us | 4 qt_liq_us |
| Forward Speed | 10 mph | 10 mph | 10 mph |
| Reverse Speed | 3.5 mph | 3.5 mph | 3.5 mph |
| ELECTRICAL: | |||
| Charging System | 15 A | 15 A | 15 A |
| Clutch | 125 ft·lbf | 125 ft·lbf | 125 ft·lbf |
| FRAME: | |||
| Front/Rear | Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing | Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing | Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing |
| Length | 76 in | 76 in | 79 in |
| WHEELS: | |||
| Drive Wheel | 23 x 10.5-12 | 23 x 10.5-12 | 23 x 10.5-12 |
| Front Caster Wheel Size | 13 x 6.5-6 | 13 x 6.5-6 | 13 x 6.5-6 |
| Caster Arm Attachment | Welded to Frame | Welded to Frame | Welded to Frame |
| SEAT: | |||
| Seat | High-Back, Spring Suspension Seat | High-Back, Spring Suspension Seat | High-Back, Spring Suspension Seat |
| Fore-Aft Adjust | Seat Slide Lever | Seat Slide Lever | Seat Slide Lever |
Videos
Learn More About The Bobcat ZT3500
Closer Look At The Bobcat ZT3500
Bobcat Zero-Turn Mower Saftey
